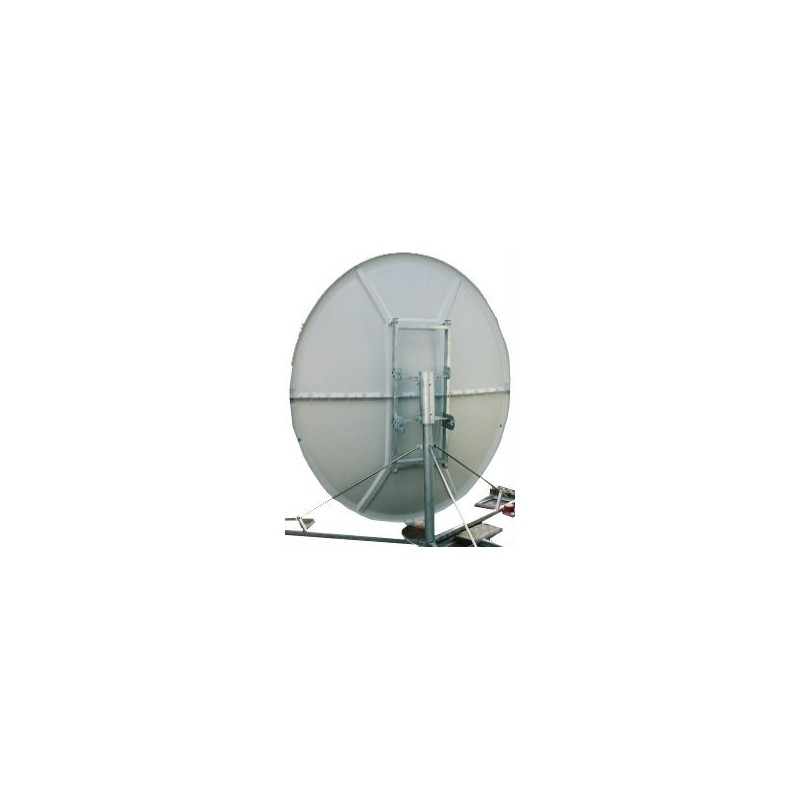

Fiber glass offset dish 240 cm, light gray

Technical specification:
Reflector effective size (w x h):
2410x2815mm

Operating frequency:
10, 7-12, 8 GHz

Gain:
10.7 GHz 47.7 dB
11.3 GHz 48.2 dB
12.6 GHz 49.0 dB

3dB beam width:
10.7 GHz 0.7 °
11.3 GHz 0.7 °
12.6 GHz 0.6 °

Focal length:
1480mm

Offset angle:
25.5 °

Feed Clamp diameter:
40mm

Maximum mast pipe size:
145mm

Reflector weight (without AZ - EL mount):
60 kg

Weight include AZ - EL mount:
110 kg

Oprerating temperature:
-40 ° C-50 ° C

Wind loading
Operational 120 km/h
Survival 200 km/h

Package size:
2810x460x1580mm

Reflector color:
Light-grey

Reflector material:
Fiber glass reinforced epoxy
